- IP804/IP808
- 8-Port PSE Controller for PoE Systems
Features :

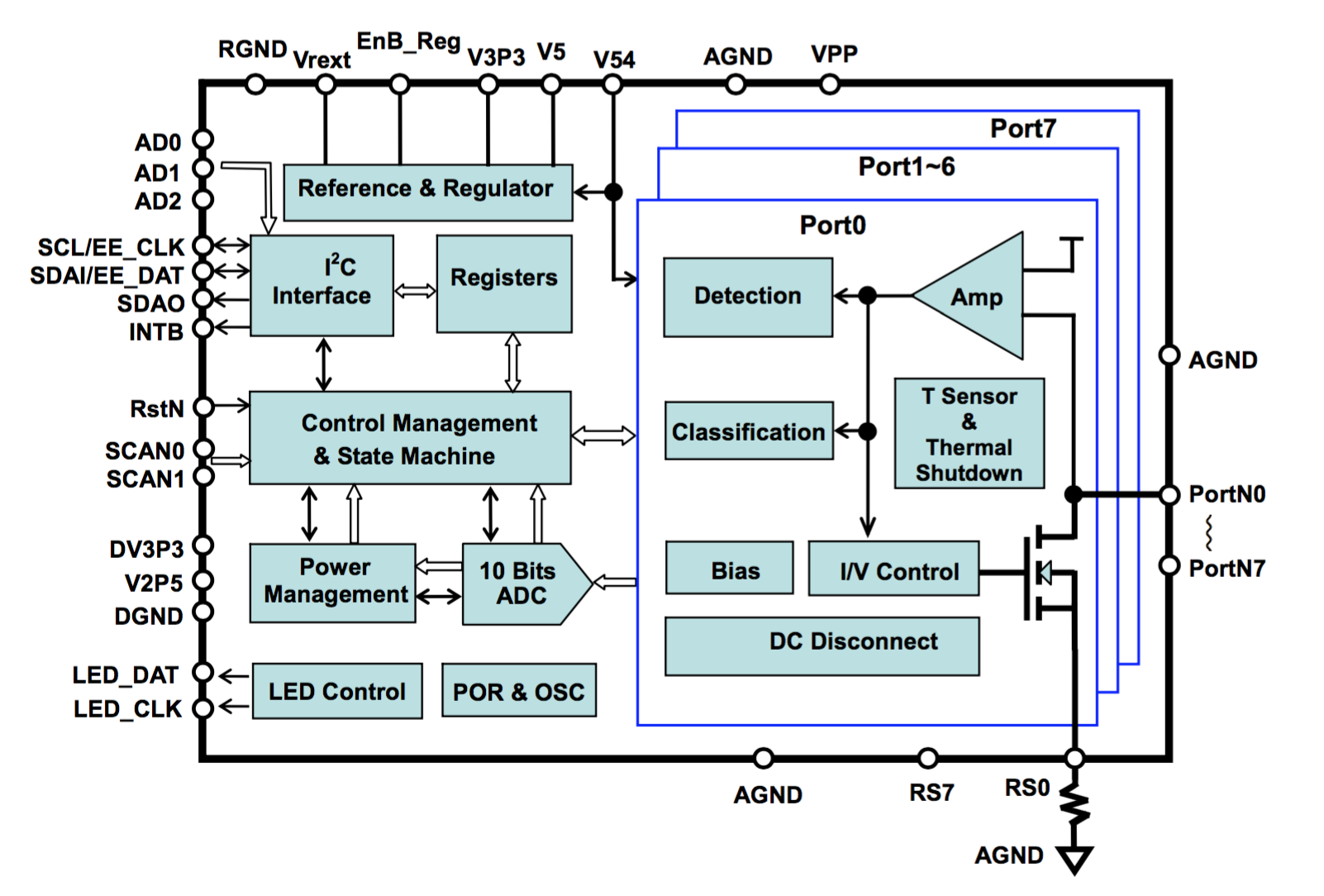

it integrates power, analog and logic circuits into a single chip.
IEEE 802.3af-2003 and 802.3at-2009 compliant
MOSFET embedded
Max. eight IP808 cascaded, up to 64 port PSE.
Thermal monitoring & protection.
Single power source 45~57V.
DC disconnect
Build in LED control, IP808+TTL or IP403.
Build in EEPROM I/F for dumb application.
Built-in 3.3V regulators for external devices
Maximum: 36W per port
Dumb:

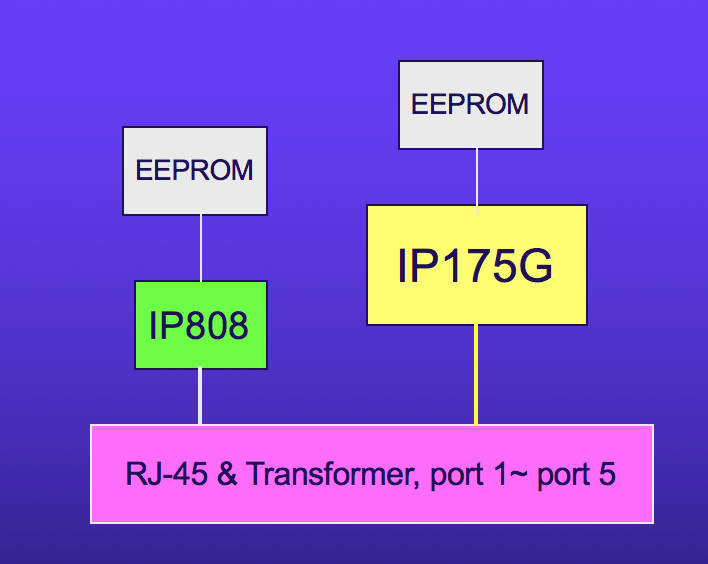

1. IP175G+IP804
5 port switch+ 4 port PoE.1. IP175G+IP804

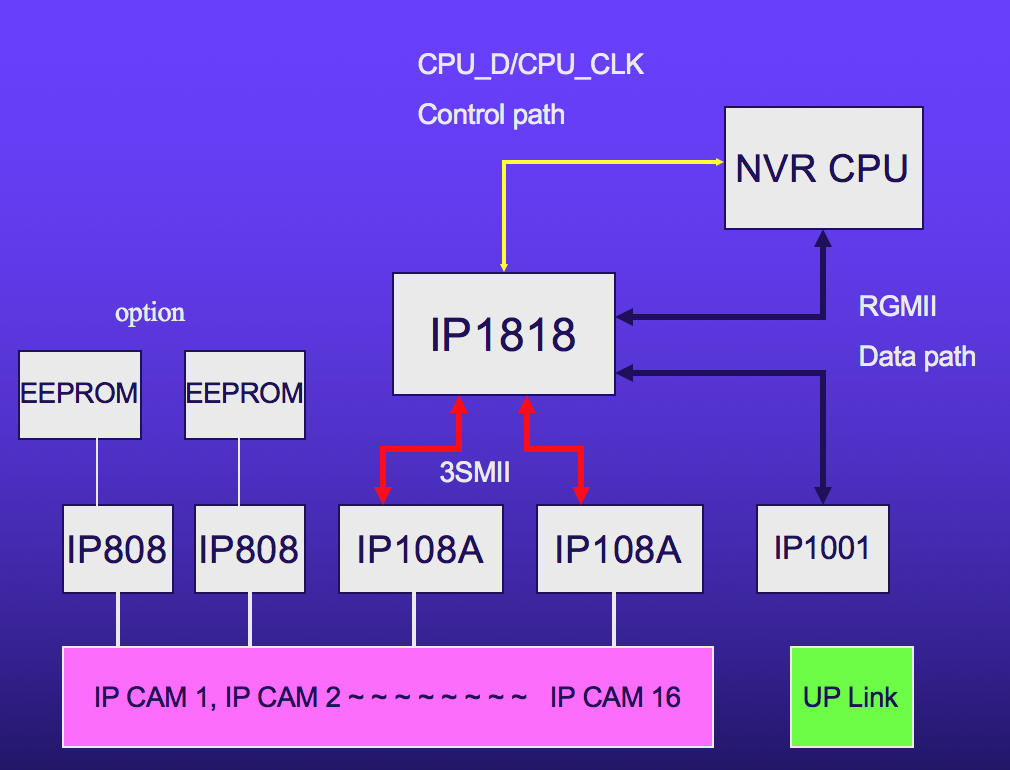

2. IP1810+IP808 (On board)
8+2G PoE switch board
8FE+ RGMII+ 1G for NVR.
Management switch:
IP1826D+IP210W+IP808(PoE module)24FE+2G smart PoE switch
